P-Line Pigtails Info


.
PowerLines (P-Lines™) are the key to PedalSnake System's ultimate configuration of "one cable only", aka the Low Voltage Method. P-Line™ Pigtail Kits plug into a BaseSnake channel to carry power from a power supply to pedals.

P-Line Pigtails terminate in standard 2.1mm power connectors (like Boss, MXR, etc.),







.
.
.






















Before purchasing P-Line Pigtails

Be sure to check out the PedalSnake-Strymon 24V Method, the quietest and most efficient method of powering pedals today.
No more AC power cord to run.

,
Back to top
.

P-Line™ Pigtail Features

  • Offered in 2-Packs One Pigtail for each end of a BaseSnake channel.

  • Both ends are 15” long

  • “MF” P-Line Pigtails have a male 2.1 plug(s) for one end, female jack(s) for the other

  • “MM” P-Line Pigtails have male 2.1 plugs for both ends

  • Terminate in female 5pin DIN connectors to plug into a BaseSnake channel.

  • All P-Line Pigtails work on the white 5wire BaseSnake channel. On a 3wire channel, depending upon the model, functions can vary (see below).
..
Back to top
.

P-Line™ Models

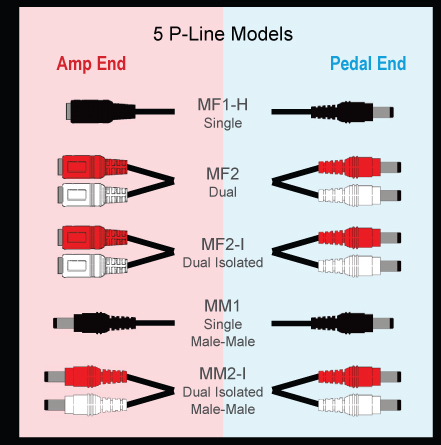

MM1 Single P-Line Makes one P-Line from any channel.
  • Handles up to 500mA of total current draw on any 3wire or 5wire channel.
  • 1 male 2.1mm plug at each end (illustration below).
MM1-H Single P-Line Makes one P-Line from any channel.

MM1-24V Single P-Line Makes one 24V P-Line from any channel.
Considered the state-of-the-art method for powering effects pedals.
  • For use only with Strymon Ojai and Ojai R30 24V-sourced power supplies.
  • Current in the 24V P-Line is not an issue. Current drawn by pedals from supply outputs is only a fraction of the 24V current in the P-Line.

  • Terminate in EIAJ-5 power plugs (Strymon's 24V connectors)
  • One right angle end, one straight end
  • No AC power cord to pedals with the 24V Method..


MF1-H Single P-Line   Works on any channel to make a single P-Line.
MF2 Dual P-Line   Makes two P-Lines from any channel.
  • The two sides share a ground wire
  • Ideal if you have 18VDC pedals mixed in with 9VDC pedals. Plug an 18VDC supply into one side of MF2, and a 9VDC supply into the other.
  • Use with two isolated DC (not AC) power supplies (others may work, and should be tested first).
  • Handles up to 300mA per side.
  • 2 male 2.1mm plugs at one end, 2 female jacks at the other (illustration below).
MF2-I Dual Isolated P-Line Makes two isolated P-Lines from the white 5wire channel.
  • The two sides have separate grounds (isolated).
  • Use with any two power supplies, DC or AC output.
  • Handles up to 500mA of total current draw per side.
  • 2 male 2.1mm plugs on one Pigtail end, 2 female jacks on the other (illustration below).
MM2-I Dual Isolated P-Line Makes two isolated P-Lines from the white 5wire channel.
  • The two sides have separate grounds (isolated).
  • Use with any two power supplies, DC or AC output.
  • Handles up to 500mA of total current draw per side.
  • 2 male 2.1mm plugs on both Pigtail ends (illustration below).


Back to Top
