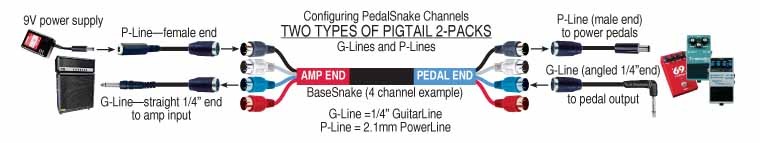

Channel-Pigtail Compatibility Chart

and

and

and

Only "-I" or "-H" PLine Pigtails require a 5- or 7-wire channel to have their full Dual-Isolated or Hi-Current function.

All other Pigtails work fine on 3-wire, 5-wire, or 7-wire channels.

See the chart below for details. It shows how each pigtail will function on each channel type.

"-H" = Hi-Current PLine
"-I " = Dual Isolated PLine

Channel-Pigtail Compata..................... .
F u n c t i o n by C h a n n e l T y p e

.
.

3-WIRE

5-WIRE

7-WIRE

GLine Pigtails

FUNCTION
. . .

RS1

single mono

single mono

single mono

no pigtails fit

RS1-TRS

single stereo

single stereo

single stereo

no pigtails fit

RS2

dual mono

dual mono

dual mono

no pigtails fit

PLine Pigtails

TYPE

MM1

single m-m

single m-m

single m-m

no pigtails fit

MM2-I

dual isolated m-m

single m-m (red side only)

dual isolated m-m

no pigtails fit

MF1

single m-f

single m-f

single m-f

no pigtails fit

MF1-H

single Hi-current m-f

single m-f

single hi-current m-f

no pigtails fit

MF2

dual m-f

dual m-f

dual m-f

no pigtails fit

MF2-I

dual isolated m-f

single m-f (red side only)

dual isolated m-f

no pigtails fit
