PedalSnake-Strymon: The 24V Method


The Quietest Onboard Power Supply—No More AC Power Cord

Strymon's new Ojai and Ojai R30 power supplies are powered by 24V DC
  • Run 24V thru PedalSnake's low-voltage cable system--nothing but quiet DC power on your pedalboard
  • Ultra-quiet pro-grade power supplies onboard, no AC power cord in sight
.

Click here for The 24V Method PDF document

ok
Songwriter/guitarist/producer.Jake Morelli (Bruno Mars, Ed Sheeran, The Roots, Roberta Flack, Jennifer Hudson, Esperanza Spalding) is running fast, clean, and quiet with the PedalSnake-Strymon 24V Method.
His 7-channel PedalSnake system specs:
  • Soft flexible 0.5" 7-channel cable, containing:
  • wireless-out-to-pedals
  • stereo amp inputs
  • two footswitch lines
  • effects loop
  • a single 24V PowerLine for his onboard Strymon Ojai R30 powrer supply.
All is clamped bulltetproof to using PSClamps the striking hotrod blue Fastback GT pedalboard by ideaBench.
.
.

.

.

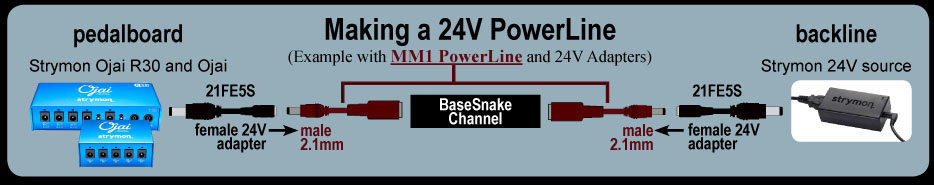

The 24V Method Uses a Single Pedalsnake Channel

.
Configure a channel with MM1-24V P-Line Pigtail Kit.
.
.
.

Back to top
.
.

Strymon 24V Power Supplies

Ojai (9V only), and Ojai R30 (9, 12, and 18V)
.
.
,
.

PedalSnake P-Lines™ (PowerLines)

Configure a BaseSnake channel with the MM1-24V P-Line Pigtail Kit.

.
,

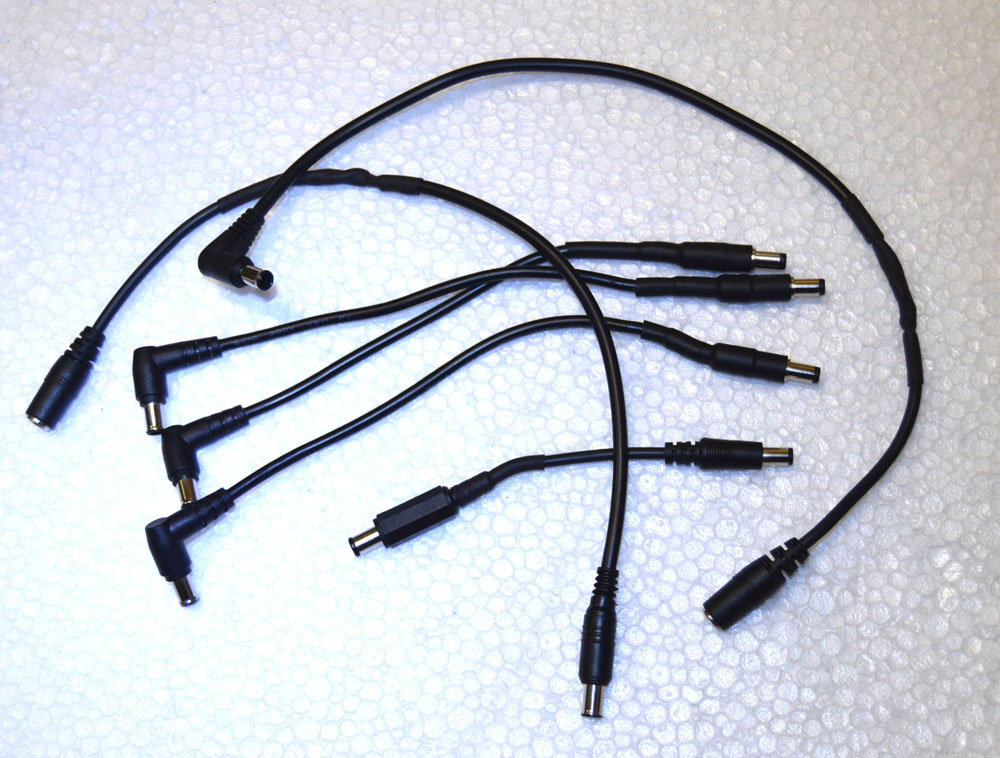

PedalSnake 24V Power Plug Adapters

Modify standard 2.1mm PedalSnake P-Lines (PowerLines) to 24V connectors.
.
.Back to top.
.

..

The Magic of PedalSnake and Strymon 24V Power

.

A Pro-Grade Board-Mounted Power Supply--with No AC Power Cord!

This is benefit #1. Say Goodbye to the nasty AC power cord, and Hello to quiet DC power. Plus a clean, clear stage, and the Strymon power supplies are the quietest in the industry.
.


.

Power Anything You Want. Never Run Out of Power.

.

  • Power 9V, 12V, and 18V pedals.
  • The outputs are powerful: 500mA each. Power chain low-current battery pedals from a single output ... as many as you want!
  • High Current pedals are no problem.
  • Apply isolation where needed: isolate any noisy pedals
No concerns about how many pedals you power through a single PedalSnake P-Line. Onboard voltage regulation keeps all outputs at steady levels.
.
Never run out of isolated outputs. As your pedal rig grows, additional power units can be chained via the 24V.
.

.

Choose Only What You Need

If you only need 9V, use Ojai.
.
If you also need 12V or 18V, use Ojai R30.

.

Chain as many as you need.
.
.

Quiet Beyond Belief

A video surfaced of power supplies being set right on top of an "on" wah. This is a clever method for "sniffing" out power noise, because the inductor coil in an ON wah acts like an antenna.

When placed right on top of the on wah, another top-of-the-line power supply hears magnetic noise from the wah, but the Styrmon supply is dead quiet.

To see this vidoe, Google using these words . strymon vs power hum . and look for a video titled "Strymon Zuma vs Voodoolab Pedal Power 2 Electromagnetic Hum".


.
.
.Back to top
