PedalSnake®

Option ONE: Keep the AC Power Cord


.

I Want To ...

  • ... Use PedalSnake to replace only my pedals-to-amp cables, and ...

  • ... Keep a power supply on my pedalboard, and continue to run the AC power cord.

    .
    NOTE You can keep a pro-grade power supply on your pedalboard, AND lose the AC power cord. See the PedalSnake-Strymon 24V Method.


.

What Do I Need?

.

Choose a 4-Channel BaseSnake

Most players with a board-mounted power supply can get by with a 4-channel BaseSnake. A very complex rig could require a 7-channel.

Choose from:

4M18 BaseSnake 4 channels, 18 feet

4M24 BaseSnake 4 channels, 24 feet
.


.

Make Guitar Cords with 1/4" G-Line Pigtails

For a Guitar Cable to the Amp Input

RS1 Single G-Line Pigtail

  • Plugs into any BaseSnake channel to make a single mono 1/4" line.

.
For Send and Return Cables in an Effects Loop

RS2 Dual G-Line Pigtail

  • Plugs into any BaseSnake channel to make two 1/4' send and return lines from one channel.
  • RS2 also works to make two cables for "wireless out and back".


Back to top

Amp Footswitch Lines

.
If you have a 1/4" footswitch line to your amp:

RS1 Single G-Line Pigtail

  • Plugs into any BaseSnake channel. For footswitches with a single mono 1/4" plug.

RS1-TRS Stereo G-Line Pigtail

  • Plugs into any BaseSnake channel. For footswitches with a single stereo TRS 1/4" plug.

.
.
If you have a 5pin DIN footswitch line to your amp (like MIDI):

If you have a 5pin DIN footswitch with 3 wires (rare)
  • Use any BaseSnake channel
If you have a 5pin DIN footswitch with 5 wires


.

MIDI Cables: Use Bare BaseSnake Channels

If you have a 5pin DIN MIDI cable with 3 wires (rare)
  • Use any BaseSnake channel.
If you have a 5pin DIN MIDI cable with 5 wires
.



Back to top
.
.

We Recommend

We want all of our customers to receive the full benefit of PedalSnake. This is why we highly recommend PedalSnake's Option TWO: Lose the AC Power Cord, and run only one cable (aka the Low Voltage Method). This method has become very easy to do with the advent of the PedalSnake-Strymon 24V Method.

You can always keep the power supplies you have. Simple rigs are easy. More complex rigs may take a little planning to ensure a quiet system. We have the expertise help you have an ultra-quiet rig using modest, cost-effective power supplies. Just contact us.

Want to keep your AC-powered, board-mounted power supply for now? No problem. You can always upgrade to this One Cable "no AC power cord" method at a later time. This is part of the beauty of PedalSnake's configurable design. It is lifetime investment that changes easily whenever you wish to change. But when you do upgrade to the Low Voltage Method, you will see that nothing really compares.
.

.


.

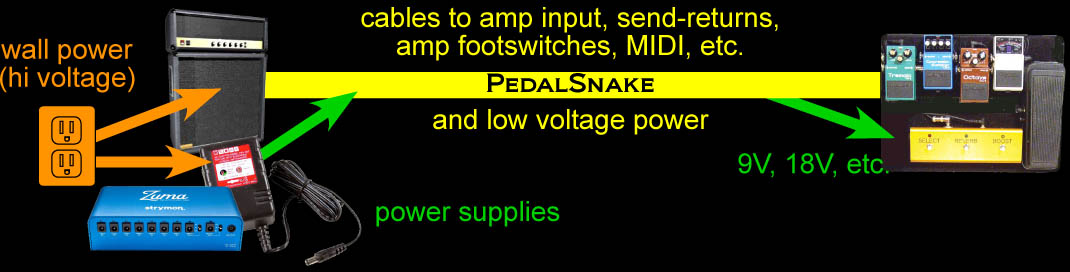

Option TWO: Lose the AC Power Cord: One Cable

The Low-Voltage Method

.
PedalSnake®: The Last Cable You'll Ever Need
